Introduction:
Laser welding refers to welding using the heat generated by a focused laser beam striking the weldment. Because laser has the optical properties of refraction and focusing, laser welding is suitable for micro parts and parts with poor weldability.
Parameter:
| Device model | HS4S |
| Laser power | 1200W |
| Host net weight | 40KG |

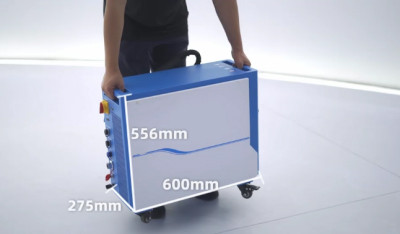

| Equipment size | 600*275*556mm |
| Welding thickness | ≤3mm |
| Welding gun weight | ≤0.7KG |
| Total equipment power | 4.5KW |
| Voltage frequency | Standard items 220V 50/60HZ |
Advantage:

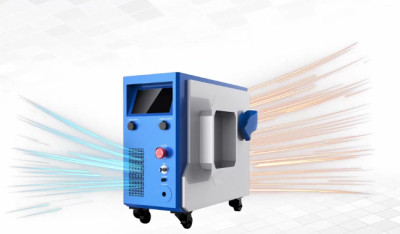

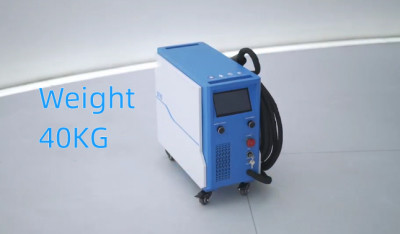

1. Integrated design of the whole machine, weighing only about 40KG
|
2.Robot intelligent interconnection
|
3.Covers an area of 0.17 square meters and can be placed in multiple scenarios: trunk, elevator, freight elevator, stairs, computer desk, etc.
|
4.Saves energy consumption by about 50% compared with water-cooled laser welding machines of the same power
|

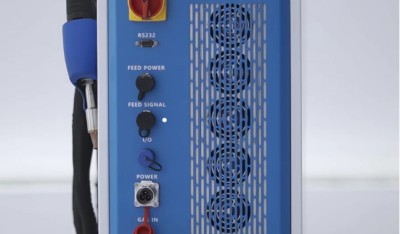

5.Multiple air ducts for heat dissipation, no fear of high temperatures |

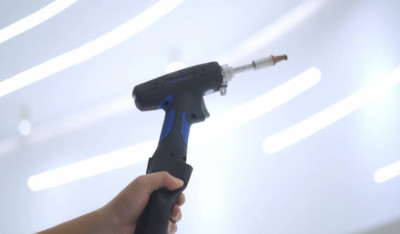

6.Three-in-one plastic gun head, ergonomic, weight 0.7KG |
Three modes：
1. Welding mode: welding stainless steel, carbon steel, galvanized sheet, copper, titanium and other metals |
2.Cleaning mode: clean rust, paint and stains |
3.Cutting mode: cutting stainless steel, carbon steel, aluminum, galvanized sheet, copper |
