1.Introduce

Full cover fiber laser cutting machine is a kind of metal sheet cutting fiber laser machine. Equipped with fiber laser device of power from 1.5kw to 6kw. And the working area is from 3050mm*1530mm to 6050mm×2530mm.

2.Parameters

3.Features of  Fiber Laser Metal Cutting Machine

1)Real-time Monitoring

Comprehensive monitoring system

 Whole process monitor

2)Efficient dust removal

The working environment is clean and tidy

The machine dust can meet indoor emission standards

3）Small footprint

Small floor space, high space utilization

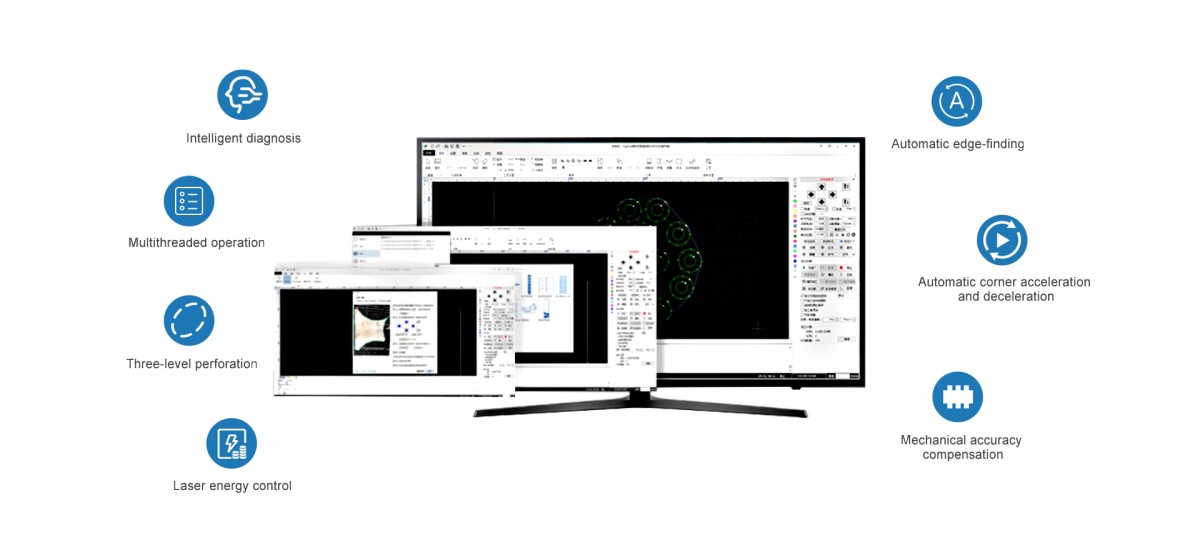

4.Intelligent CNC operating system

Adopt Cypcut  numerical control system. With intelligent diagnosis, multi-threading operation, three-level perforation, laser energy control, adaptive edge-finding, automatic corner acceleration and deceleration, flight cutting, switching worktables, mechanical accuracy compensation and other features.

5.Strict Quality Inspection for Fiber Laser

(1)Before assembly, check whether the shape and position tolerance of beam machining is within the design range to ensure the quality of equipment.

(2)Installation, detection and fixation of guide rail and rack shall be assembled by professional and technical personnel on the rack and other important precision, the use of dry sub-table adjustment to ensure the normal installation of gear and rack.

(3) By optical components with different combination, in conjunction with the software, can also be dynamic performance tests of machine, such as the positioning precision of  machine can be measured, repetitive positioning accuracy and dynamic parameters, such as micro displacement precision machine tool vibration test and analysis, dynamic characteristics analysis of rack driving, driving system response characteristic analysis of the guideway dynamic characteristics analysis and so on, has a very high precision and efficiency, and process the data in a timely manner, provide the basis for the machine tool error correction.

6. Materials

Fibre laser cutter machine is used to cut mild steel, stainless steel, aluminum alloy, brass and other kinds of steel; applicable to sheet metal cutting, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts, arts and crafts, tool processing, advertising, various metal cutting industries.
