1.Introduce

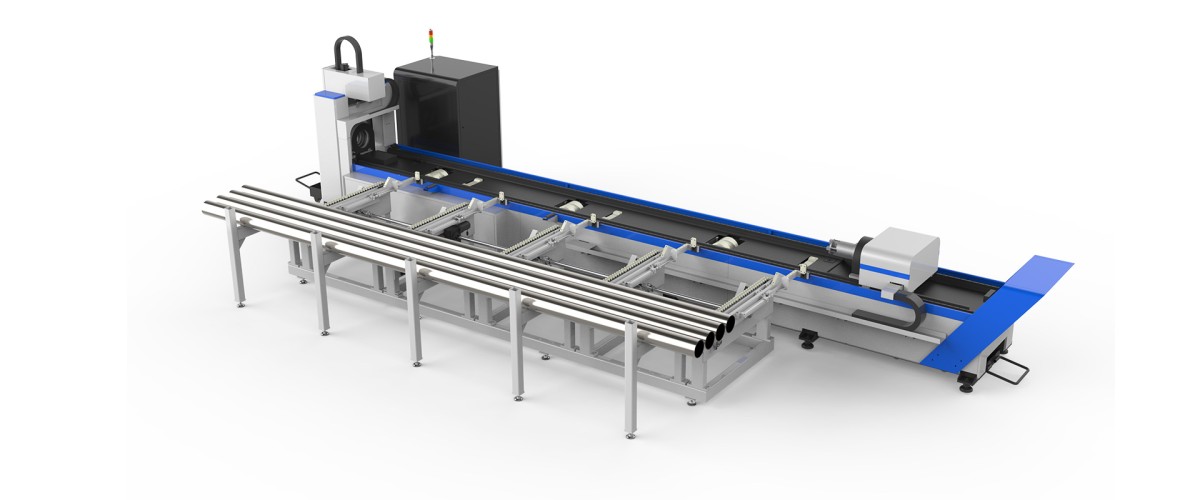

HS6016T metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 6000mm* φ10~160mm (square tube: 10*10-110*110mm).

HS6016T metal tube laser cutting machine is equipped with fiber laser device,  laser power  from 1.5kw to 3kw.

2.Parameters

3.Advantages

(1)Ultra-short Tailing

Ultra-short tailings, saving the cost of raw materials,the minimum tail length is 80mm.

(2)Ultra-fast Tube Cutting

Ultra-fast tube cutting process, the chuck speed can reach 125r/min; the running speed can reach 120m/min; the motion acceleration has reached 1.2G.

(3)High processing accuracy and good cutting quality

High processing accuracy, good cutting quality, the positioning accuracy ±0.05mm;repeated positioning accuracy ±0.02mm;machining accuracy is 0.1mm.

4.Automatic Loading and Unloading System（optional）

It can be equipped with automatic loading and unloading system, 6 meters of pipe bundles, intelligent sorting, efficient feeding, high degree of automation, saving labor cost and improving working efficiency.

5.Application Materials of Tube Laser Cutter

HS6016T metal tube fiber laser cutting machine can cut  carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.widely used in furniture, medical equipment, fitness equipment, oil pipelines, exhibition equipment, engineering machinery, bus manufacturing, locomotive manufacturing, agricultural and forestry machinery, bridges, ships, structural parts, household appliances manufacturing and other industries.
